Virtualized data

Virtual text view for Slint

KitVirtualTextView · Slint Kit 0.3.0

Slint document view with selection and native editing of one line.

Run preview

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

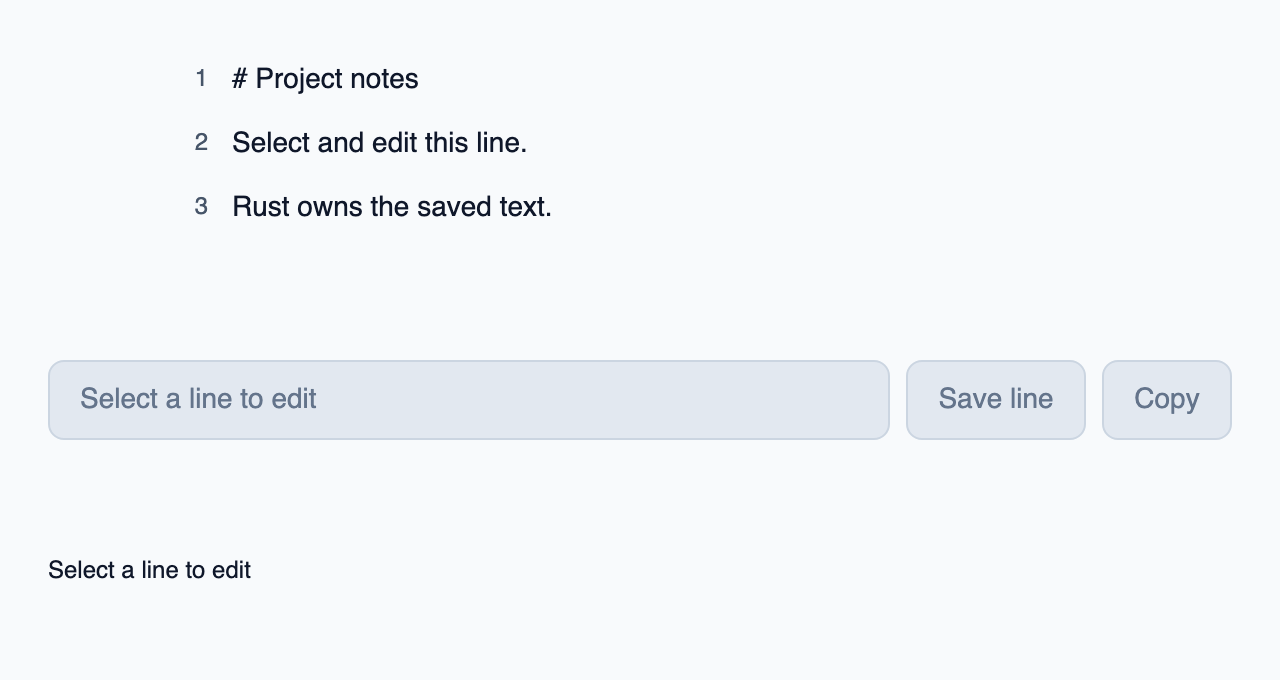

Select a line, edit it in the native field, then choose Save line. Rust updates that line while its key remains stable.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitVirtualTextView, KitThemes, TextLine, TextViewAccess, NavigationStep } from "@kit/kit.slint";
export { TextLine, NavigationStep }
export component App inherits Window {
    title: "Slint virtual text view";
    preferred-width: 640px; preferred-height: 340px;
    max-width: 100000px; max-height: 100000px;
    background: KitThemes.light.canvas;
    in property <[TextLine]> lines;
    in property <int> active-index: -1;
    in-out property <string> draft;
    in property <string> status: "Select a line to edit";
    in property <string> error;
    callback choose(int, int);
    callback move(NavigationStep);
    callback save(int, int, string);
    callback copied(int, int);
    VerticalLayout {
        padding: 24px; spacing: 16px;
        document := KitVirtualTextView { height: 240px; lines: root.lines; generation: 1;
            active-index: root.active-index; access: TextViewAccess.edit-line;
            line-draft <=> root.draft; error: root.error;
            select-line(token, generation) => { root.choose(token, generation); }
            navigate(step) => { root.move(step); }
            commit-line(token, generation, text) => { root.save(token, generation, text); }
            copy-requested(token, generation) => { root.copied(token, generation); }
        }
        Text { text: root.status; color: KitThemes.light.text-primary; }
    }
}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::{ComponentHandle, ModelRc, VecModel};
use std::{cell::RefCell, rc::Rc};
mod ui {
    slint::include_modules!();
}

fn next_index(current: Option<usize>, length: usize, step: ui::NavigationStep) -> usize {
    use ui::NavigationStep::*;
    let current = current.unwrap_or(0);
    match step {
        First => 0,
        Last => length.saturating_sub(1),
        Previous | PagePrevious => current.saturating_sub(1),
        Next | PageNext => (current + 1).min(length.saturating_sub(1)),
    }
}

#[derive(Clone, Copy, PartialEq, Eq)]
enum LineKey {
    Heading,
    Body,
    Closing,
}
impl LineKey {
    fn token(self) -> i32 {
        match self {
            Self::Heading => 11,
            Self::Body => 23,
            Self::Closing => 37,
        }
    }
}
struct Line {
    key: LineKey,
    text: String,
}
struct State {
    lines: Vec<Line>,
    selected: Option<LineKey>,
}
fn select(state: &State, app: &ui::App) {
    let index = state
        .lines
        .iter()
        .position(|line| Some(line.key) == state.selected);
    let draft = index.map_or("", |i| state.lines[i].text.as_str());
    app.set_active_index(index.map_or(-1, |i| i as i32));
    app.set_draft(draft.into());
    app.set_error("".into());
}
fn publish(state: &RefCell<State>, app: &ui::App) {
    let state = state.borrow();
    let lines = state
        .lines
        .iter()
        .enumerate()
        .map(|(index, line)| ui::TextLine {
            token: line.key.token(),
            number: index as i32 + 1,
            text: line.text.as_str().into(),
            selected: state.selected == Some(line.key),
        })
        .collect::<Vec<_>>();
    drop(state);
    app.set_lines(ModelRc::new(VecModel::from(lines)));
}
fn main() -> Result<(), slint::PlatformError> {
    let app = ui::App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let state = Rc::new(RefCell::new(State {
        lines: vec![
            Line {
                key: LineKey::Heading,
                text: "# Project notes".into(),
            },
            Line {
                key: LineKey::Body,
                text: "Select and edit this line.".into(),
            },
            Line {
                key: LineKey::Closing,
                text: "Rust owns the saved text.".into(),
            },
        ],
        selected: None,
    }));
    publish(&state, &app);
    let (model, weak) = (state.clone(), app.as_weak());
    app.on_choose(move |token, generation| {
        if generation != 1 {
            return;
        }
        {
            let mut state = model.borrow_mut();
            let Some(key) = state
                .lines
                .iter()
                .find(|line| line.key.token() == token)
                .map(|line| line.key)
            else {
                return;
            };
            state.selected = Some(key);
        }
        if let Some(app) = weak.upgrade() {
            select(&model.borrow(), &app);
            publish(&model, &app);
        }
    });
    let (model, weak) = (state.clone(), app.as_weak());
    app.on_move(move |step| {
        {
            let mut state = model.borrow_mut();
            let current = state
                .lines
                .iter()
                .position(|line| Some(line.key) == state.selected);
            let index = next_index(current, state.lines.len(), step);
            state.selected = Some(state.lines[index].key);
        }
        if let Some(app) = weak.upgrade() {
            select(&model.borrow(), &app);
            publish(&model, &app);
        }
    });
    let (model, weak) = (state.clone(), app.as_weak());
    app.on_save(move |token, generation, text| {
        if generation != 1 {
            return;
        }
        let Some(app) = weak.upgrade() else {
            return;
        };
        if text.contains(['\n', '\r']) {
            app.set_error("Enter one line only".into());
            return;
        }
        {
            let mut state = model.borrow_mut();
            if state.selected.map(LineKey::token) != Some(token) {
                return;
            }
            let Some(line) = state
                .lines
                .iter_mut()
                .find(|line| line.key.token() == token)
            else {
                return;
            };
            line.text = text.to_string();
        }
        app.set_error("".into());
        app.set_status("Line saved in Rust".into());
        publish(&model, &app);
    });
    let weak = app.as_weak();
    app.on_copied(move |_token, generation| {
        if generation == 1 {
            if let Some(app) = weak.upgrade() {
                app.set_status("Selected line copied".into());
            }
        }
    });
    app.run()
}

[package]
name = "slint-kit-virtual-text-view-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Supply lines, generation and active-index. Set access: TextViewAccess.edit-line, bind line-draft and save the accepted text in Rust through commit-line(token, generation, text).

Handle select-line to load the selected draft and navigate to move between lines. copy-requested reports a copy action. Use KitTextArea for a complete editable multiline buffer.

View source ↗

Choose between built-in options and custom composition

Shared options

• label — built-in property; custom composition example
• error — built-in property; custom composition example

Visual composition

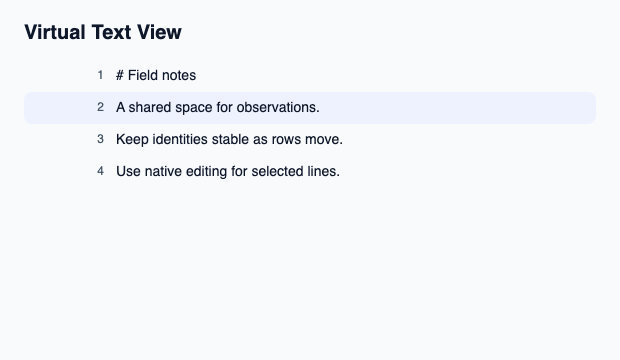

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitTheme, KitThemes, KitVirtualTextView } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitVirtualTextView example";
    preferred-width: 620px;
    preferred-height: 360px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Virtual Text View"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitVirtualTextView { theme: root.theme; height: 230px; generation: 1; lines: [{ token: 101, number: 1, text: "# Field notes", selected: false }, { token: 205, number: 2, text: "A shared space for observations.", selected: true }, { token: 309, number: 3, text: "Keep identities stable as rows move.", selected: false }, { token: 413, number: 4, text: "Use native editing for selected lines.", selected: false }]; }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle.

Properties

Types and variants

Callbacks

• navigate(NavigationStep)
• select-line(int,int)
• commit-line(int,int,string)
• copy-requested(int,int)

Functions

• take-focus()

See also

• Text Area
• Content list
• Data table
