Files

File List for Slint

KitFileList · Slint Kit 0.3.1

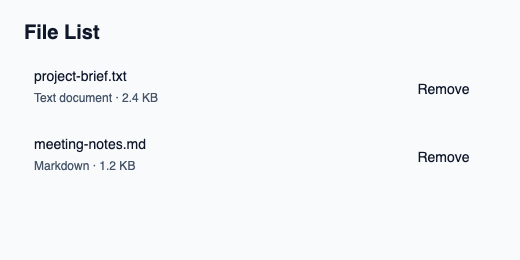

File rows with names, details and remove actions.

Run preview

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

Remove either sample resource. Rust removes the stable file key and republishes a new generation; it does not delete a file from disk.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
import {KitFileList,KitThemes,FileViewEntry} from "@kit/kit.slint";
export {FileViewEntry}
export component App inherits Window {
 title:"File list";preferred-width:540px;preferred-height:320px;max-width:100000px;max-height:100000px;background:KitThemes.light.canvas;
 in property <[FileViewEntry]> entries;in property <string> status;callback remove(int,int);
 VerticalLayout{padding:24px;spacing:16px;alignment:start;
 control:=KitFileList{entries:root.entries;remove-requested(token,generation)=>{root.remove(token,generation);}}
 Text{text:root.status;color:KitThemes.light.text-primary;}
 }
}

src/main.rs

use slint::ComponentHandle;
use std::{cell::RefCell, rc::Rc};
mod ui {
    slint::include_modules!();
}
#[derive(Clone, Copy, PartialEq)]
struct FileId(i32);
struct Entry {
    id: FileId,
    name: &'static str,
}
struct Files {
    generation: i32,
    entries: Vec<Entry>,
}
fn publish(app: &ui::App, state: &Files) {
    app.set_entries(slint::ModelRc::new(slint::VecModel::from(
        state
            .entries
            .iter()
            .map(|entry| ui::FileViewEntry {
                token: entry.id.0,
                generation: state.generation,
                name: entry.name.into(),
                detail: "Sample resource".into(),
                removable: true,
            })
            .collect::<Vec<_>>(),
    )));
    app.set_status(format!("{} selected files", state.entries.len()).into());
}
fn main() -> Result<(), slint::PlatformError> {
    let app = ui::App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let state = Rc::new(RefCell::new(Files {
        generation: 1,
        entries: vec![
            Entry {
                id: FileId(11),
                name: "brief.txt",
            },
            Entry {
                id: FileId(23),
                name: "notes.md",
            },
        ],
    }));
    publish(&app, &state.borrow());
    let weak = app.as_weak();
    app.on_remove(move |token, generation| {
        if let Some(app) = weak.upgrade() {
            let mut state = state.borrow_mut();
            if state.generation != generation {
                return;
            }
            state.entries.retain(|entry| entry.id != FileId(token));
            state.generation = state.generation.checked_add(1).expect("view generation");
            publish(&app, &state);
        }
    });
    app.run()
}

[package]
name = "slint-kit-file-list-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Project each item to FileViewEntry with a stable token and view generation. Validate both when processing remove-requested.

The example removes entries from its in-memory selection. Removing a row does not delete a file from disk.

View source ↗

Visual composition

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitFileList, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitFileList example";
    preferred-width: 520px;
    preferred-height: 260px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "File List"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitFileList { theme: root.theme; entries: [{ token: 11, generation: 1, name: "project-brief.txt", detail: "Text document · 2.4 KB", removable: true }, { token: 23, generation: 1, name: "meeting-notes.md", detail: "Markdown · 1.2 KB", removable: true }]; remove-requested(token, generation) => { root.status = "Remove file token " + token; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle.

Properties

Types and variants

Callbacks

• remove-requested(int,int)

See also

• File Picker
• File Drop Zone
