Slint Kit Documentation

Files

File Picker for Slint

KitFilePicker · Slint Kit 0.3.0

Browse action and selected-file list connected to a native dialog.

Browse action and selected-file list connected to a native dialog.

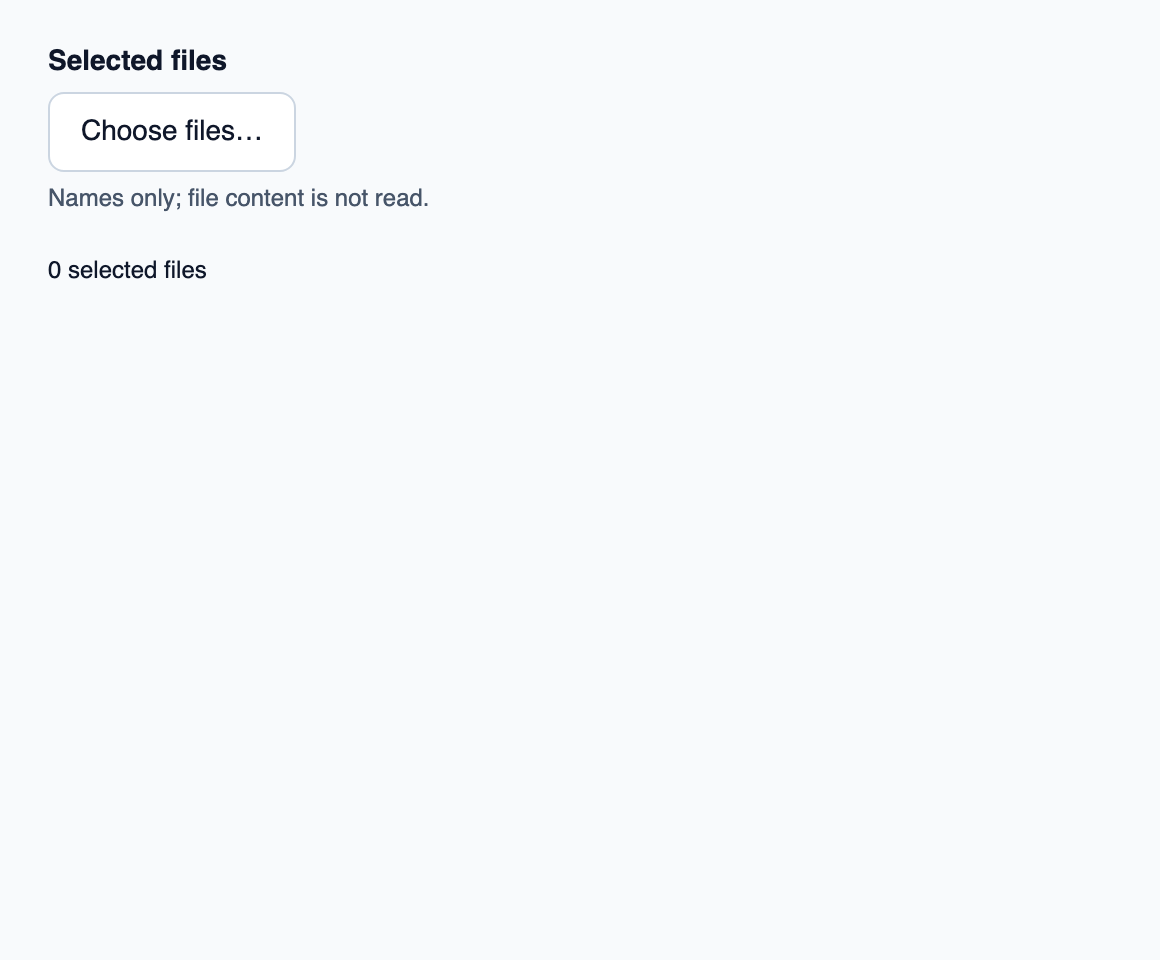

Native app built from the example below.

File dialogs and OS drag-and-drop require the native application below.

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

Choose real files in the native dialog, then remove one from the list. Requests are asynchronous; cancellation, unsupported platforms and failures remain explicit.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
import {KitFilePicker,KitFileDropZone,KitThemes,FileViewEntry,FileSelectionMode,HostRequestPresentation,DropCapability} from "@kit/kit.slint";
export {FileViewEntry,FileSelectionMode,HostRequestPresentation,DropCapability}
export component App inherits Window{
 title:"file-picker";preferred-width:580px;preferred-height:480px;max-width:100000px;max-height:100000px;background:KitThemes.light.canvas;
 in property <[FileViewEntry]> entries;in property <HostRequestPresentation> request-state;in property <string> error;in property <string> status;
 callback browse(FileSelectionMode);callback remove(int,int);
 VerticalLayout{padding:24px;spacing:16px;alignment:start;
 control:=KitFilePicker{label:"Selected files";description:"Names only; file content is not read.";mode:FileSelectionMode.multiple;entries:root.entries;request-state:root.request-state;error:root.error;browse-requested(mode)=>{root.browse(mode);}remove-requested(token,generation)=>{root.remove(token,generation);}}
 Text{text:root.status;color:KitThemes.light.text-primary;wrap:word-wrap;}
 }
}

src/main.rs

use slint::ComponentHandle;
use slint_kit::{
    FileHandle, FileRequest, HostCapability, HostError, HostRequestController, SelectionOutcome,
};
use std::{cell::RefCell, rc::Rc};
mod ui {
    slint::include_modules!();
}
#[derive(Clone, Copy, PartialEq)]
struct FileId(i32);
struct Entry {
    id: FileId,
    handle: FileHandle,
}
struct Files {
    generation: i32,
    next_id: i32,
    entries: Vec<Entry>,
    requests: HostRequestController<Vec<FileHandle>>,
}
fn publish(app: &ui::App, state: &Files) {
    app.set_entries(slint::ModelRc::new(slint::VecModel::from(
        state
            .entries
            .iter()
            .map(|entry| ui::FileViewEntry {
                token: entry.id.0,
                generation: state.generation,
                name: entry.handle.display_name.as_str().into(),
                detail: "Selected resource".into(),
                removable: true,
            })
            .collect::<Vec<_>>(),
    )));
    app.set_status(format!("{} selected files", state.entries.len()).into());
}
fn replace(state: &mut Files, files: Vec<FileHandle>) {
    state.entries.clear();
    for handle in files {
        let id = FileId(state.next_id);
        state.next_id = state.next_id.checked_add(1).expect("resource identity");
        state.entries.push(Entry { id, handle });
    }
    state.generation = state.generation.checked_add(1).expect("view generation");
}
fn failed(app: &ui::App, error: HostError) {
    app.set_request_state(if error == HostError::Unsupported {
        ui::HostRequestPresentation::Unsupported
    } else {
        ui::HostRequestPresentation::Failed
    });
    app.set_error(format!("{error:?}").into());
}
fn main() -> Result<(), slint::PlatformError> {
    let app = ui::App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let state = Rc::new(RefCell::new(Files {
        generation: 1,
        next_id: 1,
        entries: Vec::new(),
        requests: HostRequestController::default(),
    }));
    publish(&app, &state.borrow());
    if slint_kit::native::capabilities().files == HostCapability::Unsupported {
        app.set_request_state(ui::HostRequestPresentation::Unsupported);
    }
    let weak = app.as_weak();
    let shared = state.clone();
    app.on_browse(move |mode| {
        let Some(app) = weak.upgrade() else {
            return;
        };
        let ticket = shared.borrow_mut().requests.begin();
        app.set_request_state(ui::HostRequestPresentation::Pending);
        app.set_error("".into());
        let shared_async = shared.clone();
        let weak_async = weak.clone();
        if slint::spawn_local(async move {
            let outcome = slint_kit::native::pick_files(FileRequest {
                selection: if mode == ui::FileSelectionMode::Single {
                    slint_kit::FileSelectionMode::Single
                } else {
                    slint_kit::FileSelectionMode::Multiple
                },
                filters: Vec::new(),
                suggested_name: None,
            })
            .await;
            let Some(app) = weak_async.upgrade() else {
                return;
            };
            let mut state = shared_async.borrow_mut();
            if !state.requests.finish(ticket, outcome) {
                return;
            }
            match state.requests.take_result().unwrap() {
                SelectionOutcome::Selected(files) => {
                    replace(&mut state, files);
                    app.set_request_state(ui::HostRequestPresentation::Idle);
                    publish(&app, &state);
                }
                SelectionOutcome::Cancelled => {
                    app.set_request_state(ui::HostRequestPresentation::Cancelled)
                }
                SelectionOutcome::Failed(error) => failed(&app, error),
            }
        })
        .is_err()
        {
            shared.borrow_mut().requests.cancel();
            failed(&app, HostError::Unavailable);
        }
    });
    let weak = app.as_weak();
    let shared = state.clone();
    app.on_remove(move |token, generation| {
        if let Some(app) = weak.upgrade() {
            let mut state = shared.borrow_mut();
            if state.generation != generation {
                return;
            }
            state.requests.cancel();
            state.entries.retain(|entry| entry.id != FileId(token));
            state.generation = state.generation.checked_add(1).expect("view generation");
            app.set_request_state(ui::HostRequestPresentation::Idle);
            publish(&app, &state);
        }
    });

    app.run()
}
Cargo.toml and build.rs

Cargo.toml

[package]
name = "slint-kit-file-picker-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = { version = "=0.3.0", features = ["native"] }
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Enable the kit’s native feature and await native::pick_files with a FileRequest. Publish FileHandle names and retain stable resource IDs.

The sample handles pending, selected, cancelled, unsupported and failed outcomes. Browser previews do not open a native OS dialog.

View source ↗

Choose between built-in options and custom composition

Shared options

Visual composition

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

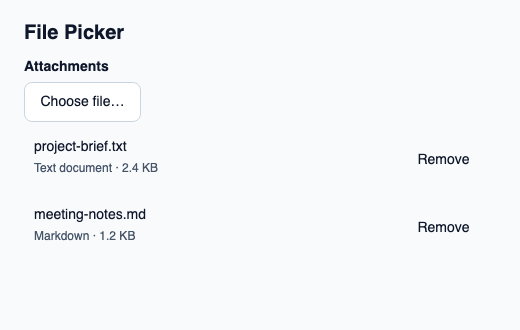

Browse action and selected-file list connected to a native dialog.
Native screenshot of the same example, rendered with Skia.
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitFilePicker, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitFilePicker example";
    preferred-width: 520px;
    preferred-height: 330px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "File Picker"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitFilePicker { theme: root.theme; entries: [{ token: 11, generation: 1, name: "project-brief.txt", detail: "Text document · 2.4 KB", removable: true }, { token: 23, generation: 1, name: "meeting-notes.md", detail: "Markdown · 1.2 KB", removable: true }]; remove-requested(token, generation) => { root.status = "Remove file token " + token; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle.

Properties

Name Type Direction
required bool in
required-message string in
custom-validity string in-out
validity KitValidityState out
will-validate bool out
validation-message string out
theme KitTheme in
control-size ControlSize in
access FieldAccess in
mode FileSelectionMode in
request-state HostRequestPresentation in
entries [FileViewEntry] in
label string in
description string in
error string in

Types and variants

Type Declaration
enum ControlSize compact, medium, comfortable
enum FieldAccess editable, read-only, disabled
enum FileSelectionMode single, multiple
struct FileViewEntry token: int, generation: int, name: string, detail: string, removable: bool
enum HostRequestPresentation idle, pending, cancelled, failed, unsupported
struct KitValidityState valid: bool, value-missing: bool, type-mismatch: bool, pattern-mismatch: bool, too-long: bool, too-short: bool, range-underflow: bool, range-overflow: bool, step-mismatch: bool, bad-input: bool, custom-error: bool,

Callbacks

Functions

See also
