Layout

Scroll Area for Slint

KitScrollArea · Slint Kit 0.3.1

Vertical scrolling area for a content column.

Run preview

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

Click Save project: Rust handles the command and updates the action count.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitScrollArea, KitTextArea, KitTextField, KitTheme, KitThemes, LayoutSpace } from "@kit/kit.slint";

export enum DemoAction { save-project }

export component App inherits Window {
    title: "KitScrollArea example";
    preferred-width: 480px;
    preferred-height: 290px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> draft-0: "Field notes";
    in-out property <string> draft-1: "alex@example.com";
    in-out property <string> draft-2: "https://example.com";
    in-out property <string> draft-3: "+1 514 555 0132";
    in property <string> status: "Choose an action.";
    callback action-requested(DemoAction);
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Scroll Area"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitScrollArea { height: 190px; inset: LayoutSpace.compact; gap: LayoutSpace.regular; KitTextField { theme: root.theme; label: "Project name"; text <=> root.draft-0; } KitTextField { theme: root.theme; label: "Email address"; text <=> root.draft-1; } KitTextField { theme: root.theme; label: "Website"; text <=> root.draft-2; } KitTextField { theme: root.theme; label: "Phone"; text <=> root.draft-3; } KitTextArea { theme: root.theme; label: "Notes"; text: "Keep observations and decisions together."; } KitButton { theme: root.theme; text: "Save project"; activated => { root.action-requested(DemoAction.save-project); } } }
        Text { text: root.status; color: root.theme.text-secondary; wrap: word-wrap; }
    }
}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::ComponentHandle;
use std::cell::Cell;
slint::include_modules!();

fn main() -> Result<(), slint::PlatformError> {
    let app = App::new()?;
    slint_kit::init_form_validation!(self, app);
    let count = Cell::new(0_u32);
    let weak = app.as_weak();
    app.on_action_requested(move |action| {
        if let Some(app) = weak.upgrade() {
            let next = count.get().checked_add(1).expect("action count capacity");
            count.set(next);
            let label = match action {
                DemoAction::SaveProject => "Save project",
            };
            app.set_status(format!("{label} handled by Rust ({next})").into());
        }
    });
    app.run()
}

[package]
name = "slint-kit-scroll-area-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Allocate a finite viewport from the parent and add children in reading order. Use reveal(top, bottom) to show a region and scroll-to-start() to return to the beginning.

The column follows the visible width and grows vertically; horizontal scrolling is disabled. This container does not virtualize its children.

View source ↗

Visual composition

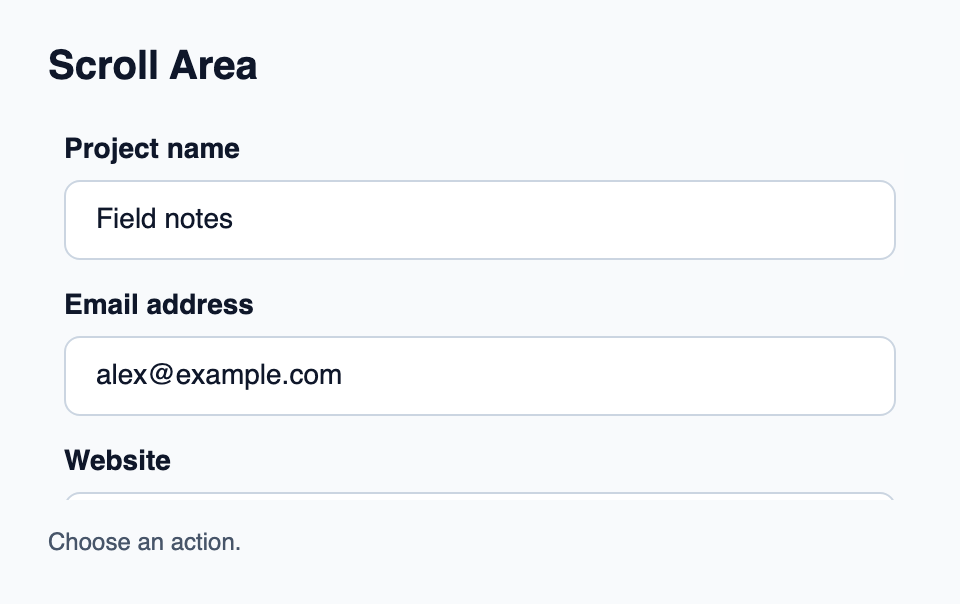

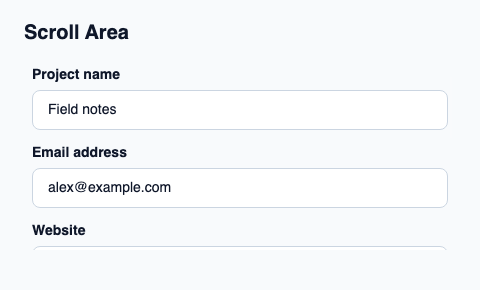

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitScrollArea, KitTextArea, KitTextField, KitTheme, KitThemes, LayoutSpace } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitScrollArea example";
    preferred-width: 480px;
    preferred-height: 290px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Scroll Area"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitScrollArea { height: 190px; inset: LayoutSpace.compact; gap: LayoutSpace.regular; KitTextField { theme: root.theme; label: "Project name"; text: "Field notes"; } KitTextField { theme: root.theme; label: "Email address"; text: "alex@example.com"; } KitTextField { theme: root.theme; label: "Website"; text: "https://example.com"; } KitTextField { theme: root.theme; label: "Phone"; text: "+1 514 555 0132"; } KitTextArea { theme: root.theme; label: "Notes"; text: "Keep observations and decisions together."; } KitButton { theme: root.theme; text: "Save project"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits ScrollView.

Properties

Types and variants

Functions

• scroll-to-start()
• reveal(top: length, bottom: length)

See also

• Container
• Content list
