Slint Kit Documentation

Display

Card for Slint

KitCard · Slint Kit 0.3.0

Card surface for grouping a unit of content.

Card surface for grouping a unit of content.

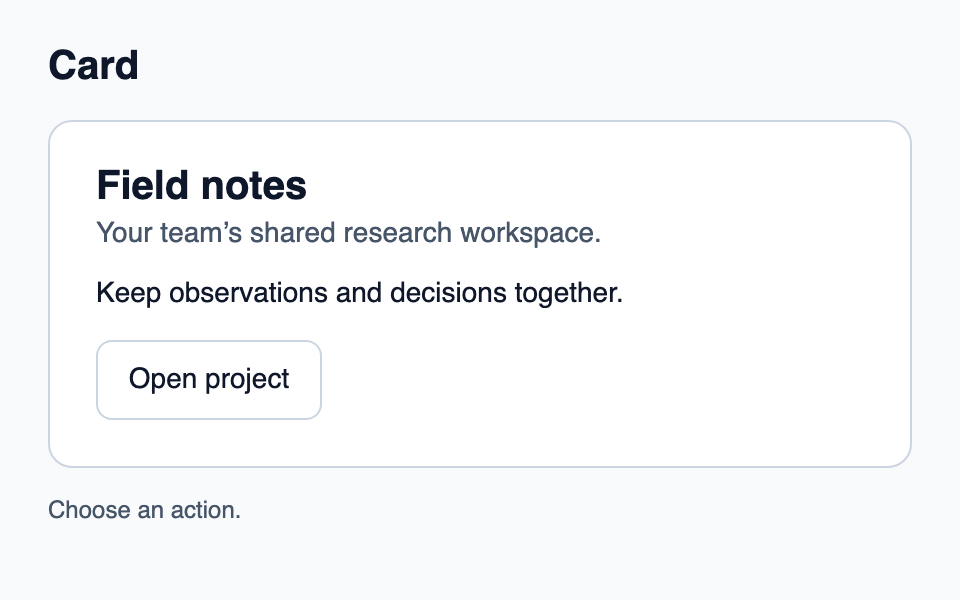

Native app built from the example below.

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

Click Open project: Rust handles the command and updates the action count.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitCard, KitCardBody, KitCardFooter, KitCardHeader, KitTheme, KitThemes } from "@kit/kit.slint";

export enum DemoAction { open-project }

export component App inherits Window {
    title: "KitCard example";
    preferred-width: 480px;
    preferred-height: 300px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in property <string> status: "Choose an action.";
    callback action-requested(DemoAction);
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Card"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitCard { theme: root.theme; KitCardHeader { theme: root.theme; title: "Field notes"; description: "Your team’s shared research workspace."; } KitCardBody { Text { text: "Keep observations and decisions together."; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; } } KitCardFooter { KitButton { theme: root.theme; text: "Open project"; activated => { root.action-requested(DemoAction.open-project); } } } }
        Text { text: root.status; color: root.theme.text-secondary; wrap: word-wrap; }
    }
}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::ComponentHandle;
use std::cell::Cell;
slint::include_modules!();

fn main() -> Result<(), slint::PlatformError> {
    let app = App::new()?;
    slint_kit::init_form_validation!(self, app);
    let count = Cell::new(0_u32);
    let weak = app.as_weak();
    app.on_action_requested(move |action| {
        if let Some(app) = weak.upgrade() {
            let next = count.get().checked_add(1).expect("action count capacity");
            count.set(next);
            let label = match action {
                DemoAction::OpenProject => "Open project",
            };
            app.set_status(format!("{label} handled by Rust ({next})").into());
        }
    });
    app.run()
}
Cargo.toml and build.rs

Cargo.toml

[package]
name = "slint-kit-card-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Compose KitCardHeader, KitCardBody and KitCardFooter as children. Set inset and gap with LayoutSpace instead of adding a second padding layer.

The card owns a border, background and content-measured height. It does not capture clicks or implicitly become an action.

View source ↗

Visual composition

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source
Card surface for grouping a unit of content.

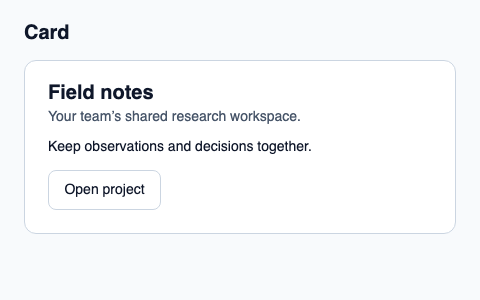

Native screenshot of the same example, rendered with Skia.
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitCard, KitCardBody, KitCardFooter, KitCardHeader, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitCard example";
    preferred-width: 480px;
    preferred-height: 300px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Card"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitCard { theme: root.theme; KitCardHeader { theme: root.theme; title: "Field notes"; description: "Your team’s shared research workspace."; } KitCardBody { Text { text: "Keep observations and decisions together."; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; } } KitCardFooter { KitButton { theme: root.theme; text: "Open project"; activated => { root.status = "Action requested"; } } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle.

Properties

Name Type Direction
theme KitTheme in
inset LayoutSpace in
gap LayoutSpace in

Types and variants

Type Declaration
enum LayoutSpace none, tight, compact, regular, roomy, section
