Input Group End for Slint

KitInputGroupEnd · Slint Kit 0.3.1

Horizontal slot for content after an editor.

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

Click the native editor and change its text; the prefix or suffix stays outside the editable value.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitInputGroup, KitInputGroupEnd, KitInputGroupText, KitTheme, KitThemes } from "@kit/kit.slint";

export component App inherits Window {
    title: "KitInputGroupEnd example";
    preferred-width: 420px;
    preferred-height: 180px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> draft-0: "129.95";
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Input Group End"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitInputGroup {
            theme: root.theme; focused: editor.has-focus;
            HorizontalLayout {
                spacing: 8px;

                Rectangle {
                    horizontal-stretch: 1; min-width: 0px; clip: true;
                    viewport := Flickable {
                        interactive: false;
                        content-width: max(self.width, editor.preferred-width + 2px);
                        content-height: self.height;
                        editor := TextInput {
                            width: viewport.content-width; height: viewport.height;
                            single-line: true; input-type: InputType.decimal;
                            accessible-label: "Amount";
                            font-size: 14px * root.theme.text-scale;
                            horizontal-alignment: left; vertical-alignment: center;
                            text <=> root.draft-0; color: root.theme.text-primary;
                            cursor-position-changed(position) => {
                                if (position.x + viewport.content-x < 0px) {
                                    viewport.content-x = -position.x;
                                } else if (position.x + 2px + viewport.content-x > viewport.width) {
                                    viewport.content-x = viewport.width - position.x - 2px;
                                }
                            }
                        }
                    }
                }
                KitInputGroupEnd { KitInputGroupText { theme: root.theme; text: "USD"; } }
            }
        }
    }
}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
slint::include_modules!();

fn main() -> Result<(), slint::PlatformError> {
    let app = App::new()?;
    slint_kit::init_form_validation!(self, app);
    app.run()
}

Cargo.toml and build.rs

Cargo.toml

[package]
name = "slint-kit-input-group-end-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Add a suffix or explicit action next to the editor inside KitInputGroup. Interactive actions should keep their own accessible names.

It aligns children to the end and keeps a natural width. It does not add a second input surface.

View source ↗

Visual composition

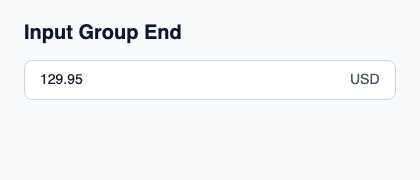

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitInputGroup, KitInputGroupEnd, KitInputGroupText, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitInputGroupEnd example";
    preferred-width: 420px;
    preferred-height: 180px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Input Group End"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitInputGroup { theme: root.theme; HorizontalLayout { spacing: 12px;  TextInput { font-size: 14px * root.theme.text-scale; vertical-alignment: center; text: "129.95"; color: root.theme.text-primary; } KitInputGroupEnd { KitInputGroupText { theme: root.theme; text: "USD"; } } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits HorizontalLayout.
