Numbers and money

Quantity Field for Slint

KitQuantityField · Slint Kit 0.3.0

Numeric text input connected to Quantity with Unit::Kilograms in Rust.

Run preview

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

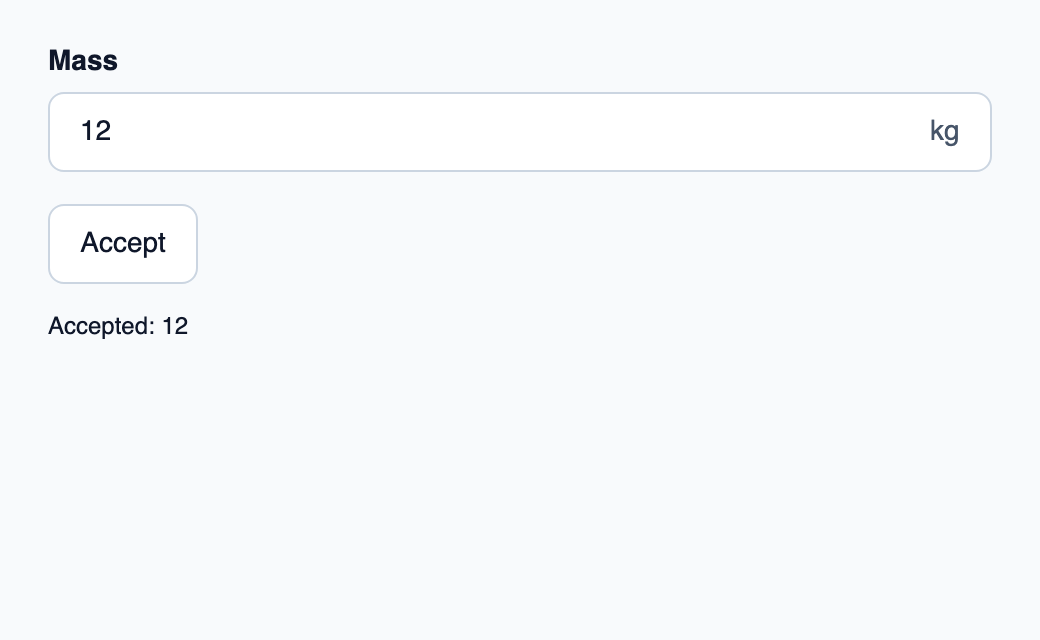

Enter a mass in kilograms and accept. Rust stores the exact decimal with its kilogram unit; the visible suffix does not perform unit conversion.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
import { KitQuantityField, KitButton, KitThemes, ValidationPresentation } from "@kit/kit.slint";
export component App inherits Window {
    title: "Mass"; preferred-width: 520px; preferred-height: 320px;
    max-width: 100000px; max-height: 100000px; background: KitThemes.light.canvas;
    in-out property <string> draft; in property <string> error; in property <string> accepted;
    callback edited(string); callback commit(); callback blurred(); callback cancel();

    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        control := KitQuantityField {
            required: true;
            label: "Mass"; text <=> root.draft; error: root.error;
            validation: root.error != "" ? ValidationPresentation.invalid : ValidationPresentation.pristine;
            placeholder: "12.50";
            edited(value) => { root.edited(value); }
            commit-requested(value) => { root.commit(); }
            cancelled => { root.cancel(); }
            focus-observed(focused) => { if (!focused) { root.blurred(); } }
            suffix: "kg";
        }
        KitButton { text: "Accept"; activated => { root.commit(); } }
        Text { text: "Accepted: " + root.accepted; color: KitThemes.light.text-primary; wrap: word-wrap; }
    }
}

src/main.rs

use slint::ComponentHandle;
use slint_kit::*;
slint::include_modules!();
#[derive(Clone, PartialEq)]
enum Unit {
    Kilograms,
}
type Value = Quantity<Unit>;
fn parse(text: &str) -> DraftValue<Value> {
    match (DecimalRules {
        locale: NumberLocale::EnCa,
        scale: DecimalScale::new(2).unwrap(),
        sign: SignPolicy::NonNegative,
        bounds: None,
    })
    .parse(text)
    {
        DraftValue::Parsed(value) => DraftValue::Parsed(Quantity {
            value,
            unit: Unit::Kilograms,
        }),
        DraftValue::Empty => DraftValue::Empty,
        DraftValue::Incomplete => DraftValue::Incomplete,
        DraftValue::Invalid(issue) => DraftValue::Invalid(issue),
    }
}
fn format(value: &Value) -> String {
    value.value.to_string()
}
fn main() -> Result<(), slint::PlatformError> {
    let app = App::new()?;
    slint_kit::init_form_validation!(self, app);
    let initial = Quantity {
        value: DecimalValue::from_integer(12),
        unit: Unit::Kilograms,
    };
    app.set_accepted(format(&initial).into());
    let weak = app.as_weak();
    let field = FieldBinding::<Value, ()>::new(
        Some(initial),
        Ownership::Local,
        CommitPolicy::OnBlur,
        AbsencePolicy::Required,
        parse,
        format,
        |_| String::new(),
        move |view| {
            if let Some(app) = weak.upgrade() {
                app.set_draft(view.draft.into());
                app.set_error(view.error.into());
            }
        },
    );
    field.set_html_constraints(slint_kit::HtmlConstraints {
        kind: slint_kit::HtmlInputKind::Number, required: true,
        step: Some("any".into()),
        ..Default::default()
    });
    let weak = app.as_weak();
    field.on_intent(move |intent| {
        if let Some(app) = weak.upgrade() {
            if let FieldIntent::Commit(value) = intent {
                app.set_accepted(format(&value).into());
            }
        }
    });
    let binding = field.clone();
    app.on_edited(move |text| {
        let _ = binding.edited(&text);
    });
    let binding = field.clone();
    app.on_commit(move || {
        let _ = binding.commit(CommitTrigger::Submit);
    });
    let binding = field.clone();
    app.on_blurred(move || {
        let _ = binding.commit(CommitTrigger::Blur);
    });
    let binding = field.clone();
    app.on_cancel(move || binding.cancel());

    app.run()
}

[package]
name = "slint-kit-quantity-field-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Use FieldBinding with an explicit parser, formatter and commit policy. The example fixes kilograms and accepts nonnegative values with at most two decimal places.

Draft text stays separate from the accepted typed value. Invalid or incomplete input shows an error without replacing that value.

View source ↗

Choose between built-in options and custom composition

Shared options

• label — built-in property; custom composition example
• description — built-in property; custom composition example
• error — built-in property; custom composition example

Visual composition

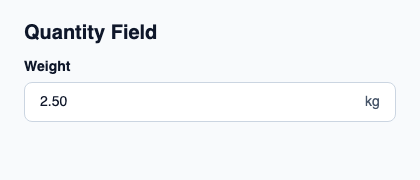

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

// SPDX-License-Identifier: GPL-3.0-or-later
// Display projections are fixtures. Validate accepted domain values in Rust.
import { KitQuantityField, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitQuantityField example";
    preferred-width: 420px;
    preferred-height: 180px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Quantity Field"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitQuantityField { theme: root.theme; label: "Weight"; text: "2.50"; suffix: "kg"; edited(value) => { root.status = "Draft: " + value; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits KitDecimalField.

See also

• Decimal Field
• Money Field
