Tooltip for Slint

KitTooltip · Slint Kit 0.3.0

Short help associated with a control’s hover and focus.

Short help associated with a control’s hover and focus.

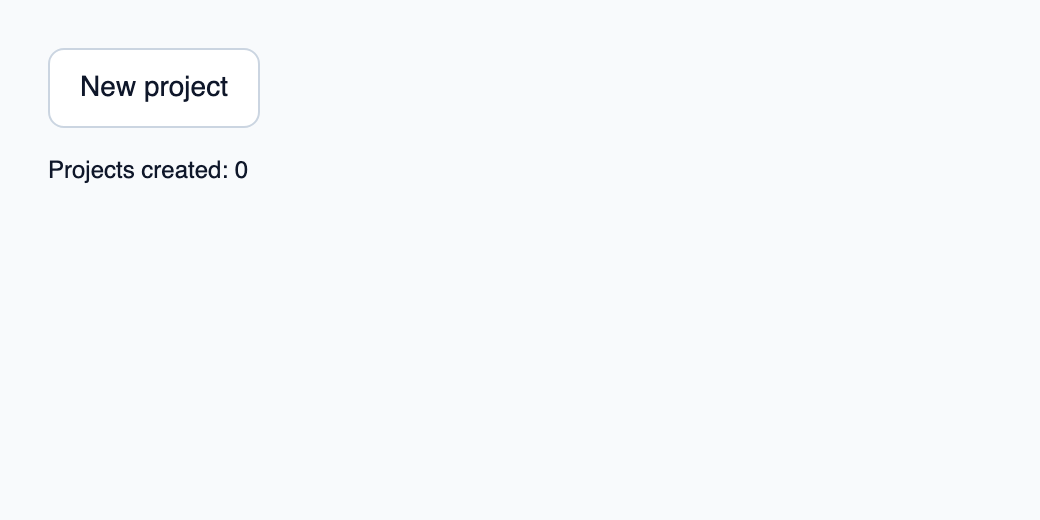

Native app built from the example below.

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

Hover or focus New project to see the tooltip; activating the button updates the Rust counter.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitTooltip, KitTooltipLayer, KitButton, KitTheme, KitThemes } from "@kit/kit.slint";
export component App inherits Window {
    title: "KitTooltip example";
    preferred-width: 520px;
    preferred-height: 260px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in property <int> created;
    callback create();
    VerticalLayout {
        padding: 24px;
        spacing: 16px;
        alignment: start;
        tip := KitTooltip {
            theme: root.theme; text: "Create a project in this workspace.";
            target-focused: create-button.has-focus;
            viewport-width: root.width; viewport-height: root.height;
            create-button := KitButton { theme: root.theme; text: "New project"; activated => { root.create(); } }
        }
        result := Text { text: "Projects created: " + root.created; color: root.theme.text-primary; }
    }
    layer := KitTooltipLayer { viewport-width: root.width; viewport-height: root.height; }
}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::ComponentHandle;

mod ui { slint::include_modules!(); }
fn main() -> Result<(), slint::PlatformError> {
    let app = ui::App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let weak = app.as_weak();
    app.on_create(move || { if let Some(app) = weak.upgrade() { app.set_created(app.get_created().checked_add(1).expect("project counter")); } });
    app.run()
}
Cargo.toml and build.rs

Cargo.toml

[package]
name = "slint-kit-tooltip-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() { slint_kit_build::compile("ui/app.slint").expect("compile component example"); }

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Wrap the control as a child, set text and bind target-focused to its has-focus. Mount a KitTooltipLayer at the window root for keyboard help.

Hover uses a native tooltip that does not intercept input; focus publishes a projection in the window layer. Escape or dismiss() hides help until the next focus cycle.

View source ↗

Visual composition

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source
Short help associated with a control’s hover and focus.

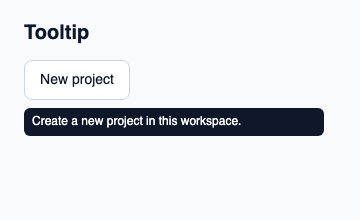

Native screenshot of the same example, rendered with Skia.
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitTheme, KitThemes, KitTooltip, KitTooltipLayer } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitTooltip example";
    preferred-width: 360px;
    preferred-height: 220px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Tooltip"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitTooltip { theme: root.theme; text: "Create a new project in this workspace."; target-focused: true; viewport-width: root.width; viewport-height: root.height; KitButton { theme: root.theme; text: "New project"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
    KitTooltipLayer { viewport-width: root.width; viewport-height: root.height; }
}

Download this example

Public API

Inherits Rectangle.

Properties

Name Type Direction
theme KitTheme in
text string in
target-focused bool in
viewport-width length in
viewport-height length in
keyboard-visible bool out

Functions

See also
