Number Stepper for Slint

KitNumberStepper · Slint Kit 0.3.0

Decimal input with increment and decrement requests.

Run preview

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

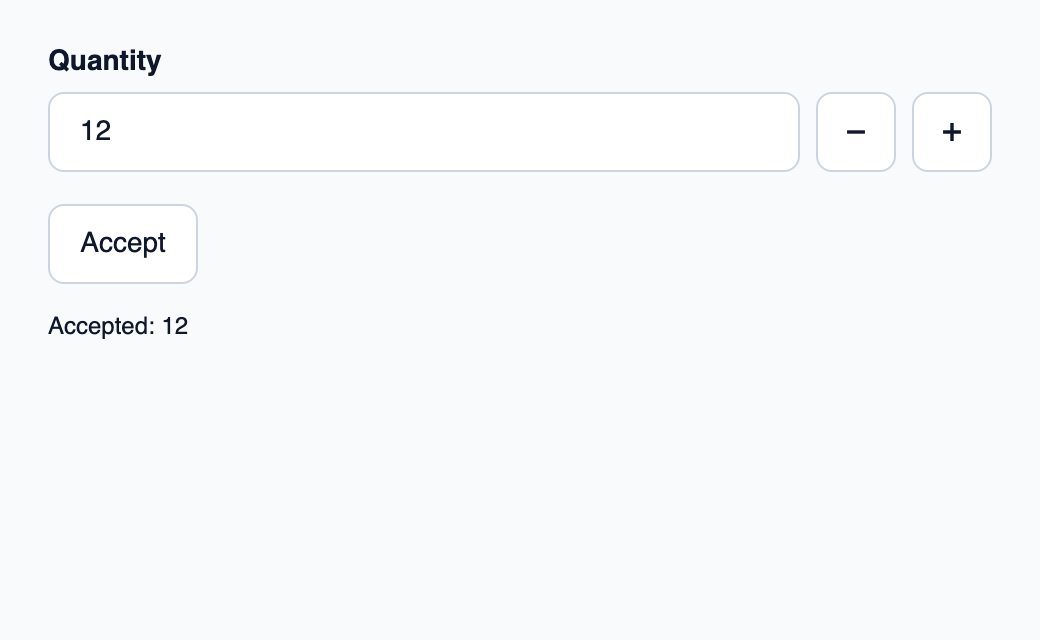

Edit the decimal value or click the step buttons. Rust applies exact steps of one within 0–100, then accepts the result.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
import { KitNumberStepper, KitButton, KitThemes, ValidationPresentation, StepDirection } from "@kit/kit.slint";
export component App inherits Window {
    title: "Quantity"; preferred-width: 520px; preferred-height: 320px;
    max-width: 100000px; max-height: 100000px; background: KitThemes.light.canvas;
    in-out property <string> draft; in property <string> error; in property <string> accepted;
    callback edited(string); callback commit(); callback blurred(); callback cancel();
    callback step(StepDirection);
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        control := KitNumberStepper {
            required: true;
            label: "Quantity"; text <=> root.draft; error: root.error;
            validation: root.error != "" ? ValidationPresentation.invalid : ValidationPresentation.pristine;
            placeholder: "12";
            edited(value) => { root.edited(value); }
            commit-requested(value) => { root.commit(); }
            cancelled => { root.cancel(); }
            focus-observed(focused) => { if (!focused) { root.blurred(); } }
            step-requested(direction) => { root.step(direction); }
        }
        KitButton { text: "Accept"; activated => { root.commit(); } }
        Text { text: "Accepted: " + root.accepted; color: KitThemes.light.text-primary; wrap: word-wrap; }
    }
}

src/main.rs

use slint::ComponentHandle;
use slint_kit::*;
mod ui {
    slint::include_modules!();
}
use ui::App;
type Value = DecimalValue;
fn parse(text: &str) -> DraftValue<Value> {
    DecimalRules {
        locale: NumberLocale::EnCa,
        scale: DecimalScale::new(2).unwrap(),
        sign: SignPolicy::NonNegative,
        bounds: None,
    }
    .parse(text)
}
fn format(value: &Value) -> String {
    value.to_string()
}
fn main() -> Result<(), slint::PlatformError> {
    let app = App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let initial = DecimalValue::from_integer(12);
    app.set_accepted(format(&initial).into());
    let weak = app.as_weak();
    let field = FieldBinding::<Value, ()>::new(
        Some(initial),
        Ownership::Local,
        CommitPolicy::OnBlur,
        AbsencePolicy::Required,
        parse,
        format,
        |_| String::new(),
        move |view| {
            if let Some(app) = weak.upgrade() {
                app.set_draft(view.draft.into());
                app.set_error(view.error.into());
            }
        },
    );
    field.set_html_constraints(slint_kit::HtmlConstraints {
        kind: slint_kit::HtmlInputKind::Number, required: true,
        step: Some("1".into()),
        ..Default::default()
    });
    let weak = app.as_weak();
    field.on_intent(move |intent| {
        if let Some(app) = weak.upgrade() {
            if let FieldIntent::Commit(value) = intent {
                app.set_accepted(format(&value).into());
            }
        }
    });
    let binding = field.clone();
    app.on_edited(move |text| {
        let _ = binding.edited(&text);
    });
    let binding = field.clone();
    app.on_commit(move || {
        let _ = binding.commit(CommitTrigger::Submit);
    });
    let binding = field.clone();
    app.on_blurred(move || {
        let _ = binding.commit(CommitTrigger::Blur);
    });
    let binding = field.clone();
    app.on_cancel(move || binding.cancel());
    let binding = field.clone();
    app.on_step(move |direction| {
        let Some(value) = binding.accepted() else {
            return;
        };
        let next = DecimalStep::new(DecimalValue::from_integer(1))
            .unwrap()
            .apply(
                value,
                if direction == ui::StepDirection::Increment {
                    StepDirection::Increment
                } else {
                    StepDirection::Decrement
                },
                NumericBounds::new(DecimalValue::ZERO, DecimalValue::from_integer(100)).unwrap(),
            );
        if let Ok(next) = next {
            let _ = binding.edited(&next.to_string());
            let _ = binding.commit(CommitTrigger::Explicit);
        }
    });
    app.run()
}

[package]
name = "slint-kit-number-stepper-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Connect step-requested to DecimalStep and NumericBounds. The example steps by 1 between 0 and 100.

Rust applies each step to the accepted DecimalValue. Text edits use the same parser and commit path as the other numeric fields.

View source ↗

Choose between built-in options and custom composition

Shared options

• label — built-in property; custom composition example
• description — built-in property; custom composition example
• error — built-in property; custom composition example

Visual composition

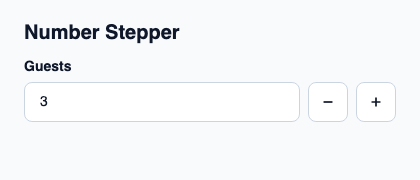

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitNumberStepper, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitNumberStepper example";
    preferred-width: 420px;
    preferred-height: 180px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Number Stepper"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitNumberStepper { theme: root.theme; label: "Guests"; text: "3"; step-requested(direction) => { root.status = "Step requested; validate in Rust"; }; edited(value) => { root.status = "Draft: " + value; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits KitField.

Properties

Types and variants

Callbacks

• invalid()
• edited(string)
• commit-requested(string)
• cancelled()
• focus-observed(bool)
• step-requested(StepDirection)

Functions

• check-validity() → bool
• report-validity() → bool
• set-custom-validity(message: string)
• reset-validation()
• take-focus()

See also

• Integer Field
• Decimal Field
• Slider
