Slint Kit Documentation

Layout

Stack for Slint

KitStack · Slint Kit 0.3.0

Vertical stack with named spacing and inset values.

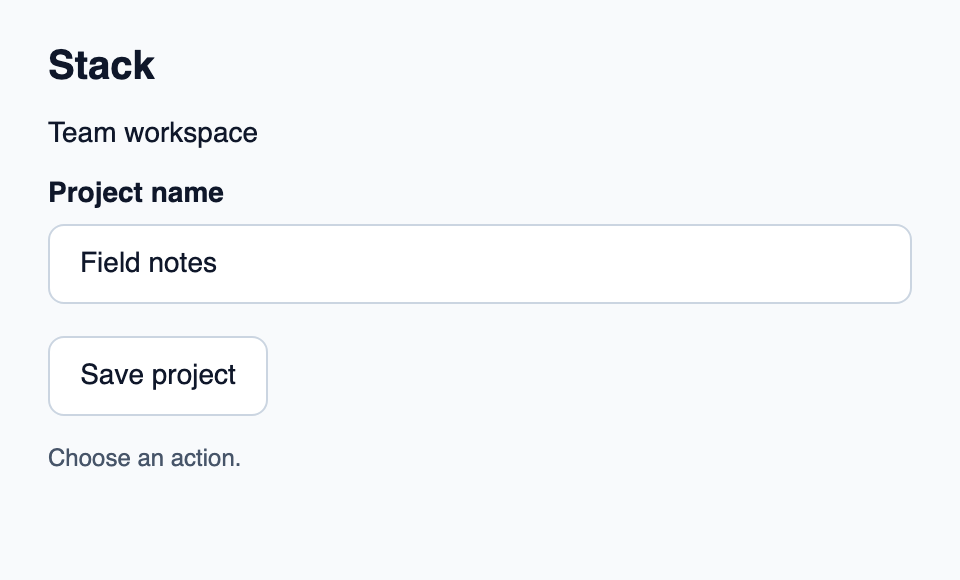

Vertical stack with named spacing and inset values.
Native app built from the example below.

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

Click Save project: Rust handles the command and updates the action count.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitStack, KitTextField, KitTheme, KitThemes } from "@kit/kit.slint";

export enum DemoAction { save-project }

export component App inherits Window {
    title: "KitStack example";
    preferred-width: 480px;
    preferred-height: 290px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> draft-0: "Field notes";
    in property <string> status: "Choose an action.";
    callback action-requested(DemoAction);
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Stack"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitStack { Text { text: "Team workspace"; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; }KitTextField { theme: root.theme; label: "Project name"; text <=> root.draft-0; }KitButton { theme: root.theme; text: "Save project"; activated => { root.action-requested(DemoAction.save-project); } } }
        Text { text: root.status; color: root.theme.text-secondary; wrap: word-wrap; }
    }
}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::ComponentHandle;
use std::cell::Cell;
slint::include_modules!();

fn main() -> Result<(), slint::PlatformError> {
    let app = App::new()?;
    slint_kit::init_form_validation!(self, app);
    let count = Cell::new(0_u32);
    let weak = app.as_weak();
    app.on_action_requested(move |action| {
        if let Some(app) = weak.upgrade() {
            let next = count.get().checked_add(1).expect("action count capacity");
            count.set(next);
            let label = match action {
                DemoAction::SaveProject => "Save project",
            };
            app.set_status(format!("{label} handled by Rust ({next})").into());
        }
    });
    app.run()
}
Cargo.toml and build.rs

Cargo.toml

[package]
name = "slint-kit-stack-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Place children in reading order and set gap and inset with LayoutSpace. Use it to compose sections without repeating spacing dimensions.

It aligns children to the start and preserves their natural height. The parent remains responsible for available width.

View source ↗

Visual composition

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

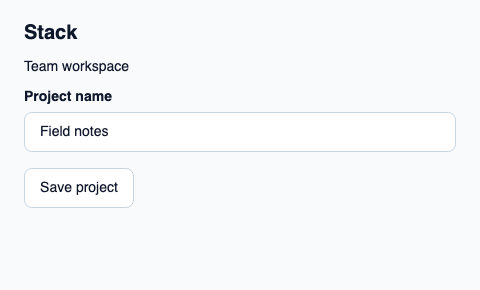

Vertical stack with named spacing and inset values.
Native screenshot of the same example, rendered with Skia.
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitStack, KitTextField, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitStack example";
    preferred-width: 480px;
    preferred-height: 290px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Stack"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitStack { Text { text: "Team workspace"; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; }KitTextField { theme: root.theme; label: "Project name"; text: "Field notes"; }KitButton { theme: root.theme; text: "Save project"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits VerticalLayout.

Properties

Name Type Direction
gap LayoutSpace in
inset LayoutSpace in

Types and variants

Type Declaration
enum LayoutSpace none, tight, compact, regular, roomy, section
