Data table for Slint

KitDataTable · Slint Kit 0.3.0

Slint data table with virtualized rows, sortable headers and row selection.

Try the component

Download the complete project, extract it and run cargo run --locked in its folder. Rust 1.92+; Slint Kit 0.3.0 from crates.io. You can also copy the four files below.

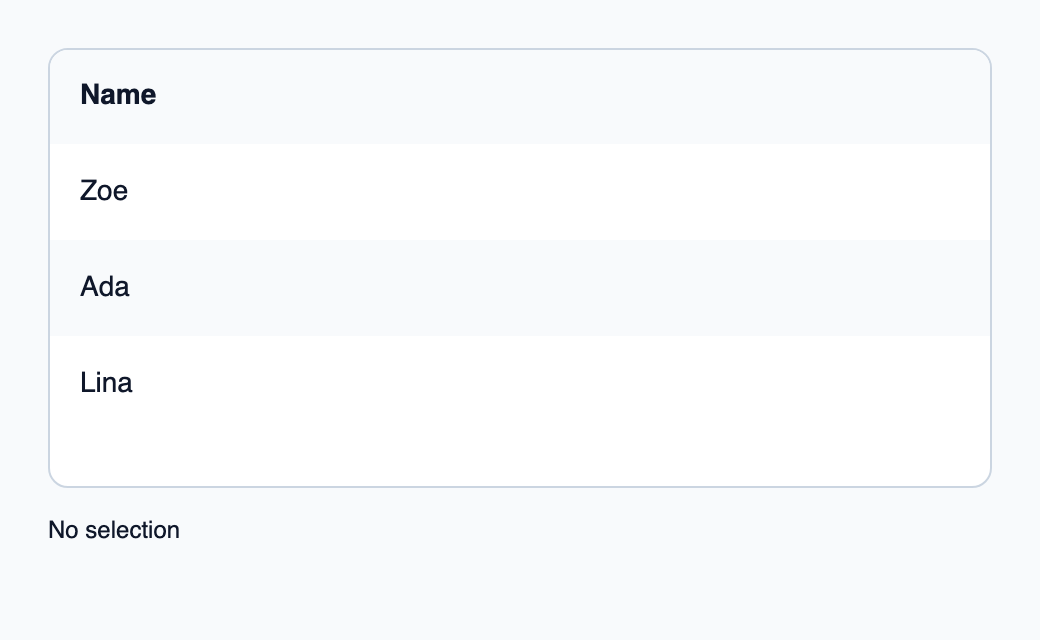

Click Name to sort, then select Ada. Sort again: Rust keeps Ada selected by key, even when the row moves.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitDataTable, KitThemes, TableRow, TableColumn, DataSortDirection, DataAlignment, NavigationStep } from "@kit/kit.slint";
export { TableRow, TableColumn, DataSortDirection, DataAlignment, NavigationStep }
export component App inherits Window {
    title: "Slint data table";
    preferred-width: 520px; preferred-height: 320px;
    max-width: 100000px; max-height: 100000px;
    background: KitThemes.light.canvas;
    in property <[TableRow]> rows;
    in property <[TableColumn]> columns;
    in property <int> generation;
    in property <int> active-index: -1;
    in property <string> selected-label: "No selection";
    callback sort(int);
    callback choose(int, int);
    callback move(NavigationStep);
    VerticalLayout {
        padding: 24px; spacing: 16px;
        table := KitDataTable {
            height: 220px; rows: root.rows; columns: root.columns;
            generation: root.generation; active-index: root.active-index;
            sort-requested(token) => { root.sort(token); }
            activate(token, generation) => { root.choose(token, generation); }
            navigate(step) => { root.move(step); }
        }
        Text { text: root.selected-label; color: KitThemes.light.text-primary; }
    }
}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::{ComponentHandle, ModelRc, VecModel};
use std::{cell::RefCell, rc::Rc};
mod ui {
    slint::include_modules!();
}

fn next_index(current: Option<usize>, length: usize, step: ui::NavigationStep) -> usize {
    use ui::NavigationStep::*;
    let current = current.unwrap_or(0);
    match step {
        First => 0,
        Last => length.saturating_sub(1),
        Previous | PagePrevious => current.saturating_sub(1),
        Next | PageNext => (current + 1).min(length.saturating_sub(1)),
    }
}

#[derive(Clone, Copy, PartialEq, Eq)]
enum Person {
    Zoe,
    Ada,
    Lina,
}
impl Person {
    fn token(self) -> i32 {
        match self {
            Self::Zoe => 11,
            Self::Ada => 23,
            Self::Lina => 37,
        }
    }
    fn label(self) -> &'static str {
        match self {
            Self::Zoe => "Zoe",
            Self::Ada => "Ada",
            Self::Lina => "Lina",
        }
    }
}
#[derive(Clone, Copy, PartialEq, Eq)]
struct Generation(i32);
struct State {
    order: Vec<Person>,
    selected: Option<Person>,
    active: Option<Person>,
    direction: ui::DataSortDirection,
    generation: Generation,
}
fn publish(state: &RefCell<State>, app: &ui::App) {
    let state = state.borrow();
    let rows = state
        .order
        .iter()
        .map(|person| ui::TableRow {
            token: person.token(),
            cells: ModelRc::new(VecModel::from(vec![person.label().into()])),
            selected: state.selected == Some(*person),
            disabled: false,
        })
        .collect::<Vec<_>>();
    let columns = vec![ui::TableColumn {
        token: 1,
        label: "Name".into(),
        sortable: true,
        sort: state.direction,
        alignment: ui::DataAlignment::Leading,
    }];
    let active = state
        .order
        .iter()
        .position(|p| Some(*p) == state.active)
        .map_or(-1, |i| i as i32);
    let label = state.selected.map_or("No selection".to_owned(), |p| {
        format!("Selected: {}", p.label())
    });
    let generation = state.generation.0;
    drop(state);
    app.set_generation(generation);
    app.set_active_index(active);
    app.set_rows(ModelRc::new(VecModel::from(rows)));
    app.set_columns(ModelRc::new(VecModel::from(columns)));
    app.set_selected_label(label.into());
}
fn main() -> Result<(), slint::PlatformError> {
    let app = ui::App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let state = Rc::new(RefCell::new(State {
        order: vec![Person::Zoe, Person::Ada, Person::Lina],
        selected: None,
        active: None,
        direction: ui::DataSortDirection::Unsorted,
        generation: Generation(1),
    }));
    publish(&state, &app);
    let (model, weak) = (state.clone(), app.as_weak());
    app.on_sort(move |column| {
        if column != 1 {
            return;
        }
        {
            let mut state = model.borrow_mut();
            let Some(next) = state.generation.0.checked_add(1) else {
                return;
            };
            state.generation = Generation(next);
            state.direction = if state.direction == ui::DataSortDirection::Ascending {
                ui::DataSortDirection::Descending
            } else {
                ui::DataSortDirection::Ascending
            };
            state.order.sort_by_key(|p| p.label());
            if state.direction == ui::DataSortDirection::Descending {
                state.order.reverse();
            }
        }
        if let Some(app) = weak.upgrade() {
            publish(&model, &app);
        }
    });
    let (model, weak) = (state.clone(), app.as_weak());
    app.on_choose(move |token, generation| {
        {
            let mut state = model.borrow_mut();
            if generation != state.generation.0 {
                return;
            }
            let Some(person) = state.order.iter().copied().find(|p| p.token() == token) else {
                return;
            };
            state.selected = Some(person);
            state.active = Some(person);
        }
        if let Some(app) = weak.upgrade() {
            publish(&model, &app);
        }
    });
    let weak = app.as_weak();
    app.on_move(move |step| {
        {
            let mut state = state.borrow_mut();
            let current = state.order.iter().position(|p| Some(*p) == state.active);
            let index = next_index(current, state.order.len(), step);
            state.active = Some(state.order[index]);
        }
        if let Some(app) = weak.upgrade() {
            publish(&state, &app);
        }
    });
    app.run()
}

Cargo.toml and build.rs

Cargo.toml

[package]
name = "slint-kit-data-table-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() {
    slint_kit_build::compile("ui/app.slint").expect("compile component example");
}

Files: Cargo.toml · build.rs · ui/app.slint · src/main.rs

Give the table a bounded height, then supply columns, rows, generation and active-index. Handle sort-requested(column-token) in Rust by sorting your model and updating the column direction. Handle navigate to update the active index and activate(row-token, generation) to act on a row.

The table renders the supplied row order; clicking a header does not sort it automatically. Changing active-index reveals that row. Set empty-label for an empty model and interactive: false while a modal blocks the table.

To connect sorting, keyboard input and selection, use the complete sortable table application.

View source ↗

Choose between built-in options and custom composition

Shared options

label — built-in property; custom composition example

Visual composition

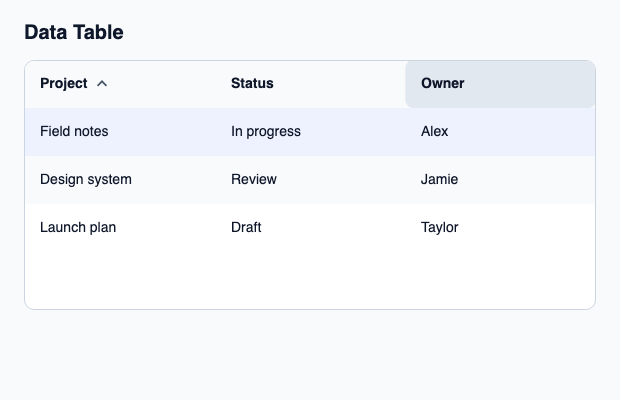

The file below produces the screenshot. For controller-driven components, it shows the displayed state without supplying the Rust wiring. Create a project.

Show the screenshot source

// SPDX-License-Identifier: GPL-3.0-or-later
import { DataAlignment, DataSortDirection, KitDataTable, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitDataTable example";
    preferred-width: 620px;
    preferred-height: 400px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Data Table"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitDataTable { theme: root.theme; height: 250px; generation: 1; columns: [{ token: 11, label: "Project", sortable: true, sort: DataSortDirection.ascending, alignment: DataAlignment.leading }, { token: 23, label: "Status", sortable: true, sort: DataSortDirection.unsorted, alignment: DataAlignment.leading }, { token: 38, label: "Owner", sortable: false, sort: DataSortDirection.unsorted, alignment: DataAlignment.leading }]; rows: [{ token: 101, cells: ["Field notes", "In progress", "Alex"], selected: true, disabled: false }, { token: 205, cells: ["Design system", "Review", "Jamie"], selected: false, disabled: false }, { token: 309, cells: ["Launch plan", "Draft", "Taylor"], selected: false, disabled: false }]; activate(token, generation) => { root.status = "Project token " + token; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle.

Properties

Name	Type	Direction
`interactive`	`bool`	`in`
`theme`	`KitTheme`	`in`
`control-size`	`ControlSize`	`in`
`columns`	`[TableColumn]`	`in`
`rows`	`[TableRow]`	`in`
`generation`	`int`	`in`
`active-index`	`int`	`in`
`label`	`string`	`in`
`empty-label`	`string`	`in`
`minimum-column-width`	`length`	`in`
`scroll-y`	`length`	`out`

Types and variants

Type	Declaration
`enum ControlSize`	`compact, medium, comfortable`
`enum DataAlignment`	`leading, center, trailing`
`enum DataSortDirection`	`unsorted, ascending, descending`
`enum NavigationStep`	`next, previous, first, last, page-next, page-previous`
`struct TableColumn`	`token: int, label: string, sortable: bool, sort: DataSortDirection, alignment: DataAlignment`
`struct TableRow`	`token: int, cells: [string], selected: bool, disabled: bool`

Callbacks

activate(int,int)
navigate(NavigationStep)
sort-requested(int)

Functions

take-focus()
reveal-active()
