Groupe de boutons à bascule pour Slint

KitToggleGroup · Slint Kit 0.3.0

Groupe d’actions à sélection multiple contrôlée.

Essayer le composant

Télécharger le projet complet, le décompresser et lancer cargo run --locked dans son dossier. Rust 1.92+ ; Slint Kit 0.3.0 depuis crates.io. Vous pouvez aussi copier les quatre fichiers ci-dessous.

Choisissez Push pour l’ajouter sans perdre Email. Retirez une pastille ou désactivez un canal accepté.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitToggleGroup, OptionRow, ChoiceRow, ChipRow, SelectState, NavigationStep, SelectionAvailability, KitTheme, KitThemes } from "@kit/kit.slint";
export component App inherits Window {
    title: "KitToggleGroup example";
    preferred-width: 520px;
    preferred-height: 400px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in property <[OptionRow]> rows;
    in property <[ChoiceRow]> choices;
    in property <[ChipRow]> chips;
    in property <SelectState> select-state;
    in property <string> result;
    callback toggle(int, int);
    callback navigate(NavigationStep);
    callback open();
    callback close();
    callback remove(int);
    VerticalLayout {
        padding: 24px;
        spacing: 16px;
        alignment: start;
        control := KitToggleGroup {
            theme: root.theme; rows: root.choices; generation: 1; active-token: root.select-state.active.token; label: "Delivery channels";
            navigate(step) => { root.navigate(step); }
            toggled(token, generation) => { root.toggle(token, generation); }
        }
        result := Text { text: root.result; color: root.theme.text-primary; }
    }

}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::{ComponentHandle, ModelRc, VecModel};
use slint_kit::{MultiSelectController, Ownership, SelectOption, NavigationStep};
use std::{cell::RefCell, rc::Rc};
mod ui { slint::include_modules!(); }
#[derive(Clone, Copy, PartialEq, Eq, Hash)]
enum Channel { Email, Push, Sms }
impl Channel {
    fn all() -> [Self; 3] { [Self::Email, Self::Push, Self::Sms] }
    fn token(self) -> i32 { match self { Self::Email => 11, Self::Push => 23, Self::Sms => 38 } }
    fn from_token(token: i32) -> Option<Self> { Self::all().into_iter().find(|key| key.token() == token) }
    fn label(self) -> &'static str { match self { Self::Email => "Email", Self::Push => "Push", Self::Sms => "SMS" } }
}
fn publish(app: &ui::App, controller: &MultiSelectController<Channel>, open: bool) {
    let rows = Channel::all().map(|key| ui::OptionRow { token: key.token(), generation: 1, label: key.label().into(), description: "".into(), disabled: false });
    let choices = Channel::all().map(|key| ui::ChoiceRow { token: key.token(), label: key.label().into(), disabled: false, selected: controller.selected().contains(&key) });
    let chips = controller.selected().iter().map(|key| ui::ChipRow { token: key.token(), label: key.label().into(), removable: true }).collect::<Vec<_>>();
    let active = controller.active().copied().unwrap_or(Channel::Email);
    app.set_rows(ModelRc::new(VecModel::from(rows.to_vec()))); app.set_choices(ModelRc::new(VecModel::from(choices.to_vec()))); app.set_chips(ModelRc::new(VecModel::from(chips)));
    app.set_select_state(ui::SelectState { open, generation: 1, active_index: Channel::all().iter().position(|key| *key == active).unwrap() as i32, active: ui::SelectionRef { present: true, token: active.token() }, selected: ui::SelectionRef { present: false, token: -1 }, selection_availability: ui::SelectionAvailability::Absent });
    app.set_result(format!("Selected: {}", controller.selected().iter().map(|key| key.label()).collect::<Vec<_>>().join(", ")).into());
}
fn step(value: ui::NavigationStep) -> NavigationStep { match value { ui::NavigationStep::Next => NavigationStep::Next, ui::NavigationStep::Previous => NavigationStep::Previous, ui::NavigationStep::First => NavigationStep::First, ui::NavigationStep::Last => NavigationStep::Last, ui::NavigationStep::PageNext => NavigationStep::PageNext, ui::NavigationStep::PagePrevious => NavigationStep::PagePrevious } }
fn main() -> Result<(), slint::PlatformError> {
    let app = ui::App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let controller = Rc::new(RefCell::new(MultiSelectController::new(Channel::all().into_iter().map(|key| SelectOption::new(key, key.label())).collect(), vec![Channel::Email], Ownership::Local, None).expect("unique channel keys")));
    publish(&app, &controller.borrow(), false);
    let state = controller.clone(); let weak = app.as_weak();
    app.on_open(move || { if let Some(app) = weak.upgrade() { publish(&app, &state.borrow(), true); } });
    let state = controller.clone(); let weak = app.as_weak();
    app.on_close(move || { if let Some(app) = weak.upgrade() { publish(&app, &state.borrow(), false); } });
    let state = controller.clone(); let weak = app.as_weak();
    app.on_navigate(move |direction| { state.borrow_mut().navigate(step(direction), 3); if let Some(app) = weak.upgrade() { publish(&app, &state.borrow(), app.get_select_state().open); } });
    let state = controller.clone(); let weak = app.as_weak();
    app.on_toggle(move |token, generation| {
        if generation != 1 { return; }
        if let Some(key) = Channel::from_token(token) { let _ = state.borrow_mut().toggle(&key); }
        if let Some(app) = weak.upgrade() { publish(&app, &state.borrow(), true); }
    });
    let weak = app.as_weak();
    app.on_remove(move |token| {
        if let Some(key) = Channel::from_token(token) { if controller.borrow().selected().contains(&key) { let _ = controller.borrow_mut().toggle(&key); } }
        if let Some(app) = weak.upgrade() { publish(&app, &controller.borrow(), app.get_select_state().open); }
    });
    app.run()
}

Cargo.toml et build.rs

Cargo.toml

[package]
name = "slint-kit-toggle-group-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() { slint_kit_build::compile("ui/app.slint").expect("compile component example"); }

Fichiers : Cargo.toml · build.rs · ui/app.slint · src/main.rs

Marquez chaque ChoiceRow.selected depuis votre ensemble métier et traitez toggled(token, generation). Conservez un active-token séparé pour la navigation clavier.

Chaque ligne peut être sélectionnée indépendamment des autres. L’API reste distincte du groupe radio et n’impose aucune exclusivité.

Voir le code source ↗

Choisir entre une option intégrée et une composition personnalisée

Options partagées

label — propriété intégrée ; exemple de composition personnalisé

Composition visuelle

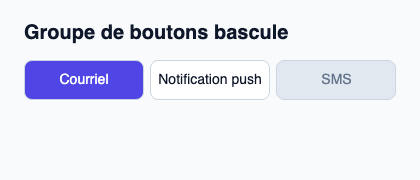

Le fichier ci-dessous produit la capture. Pour les composants pilotés par un contrôleur, il montre l’état affiché sans fournir le branchement Rust. Créer un projet.

Afficher le fichier de la capture

// Public label overrides localize this fixture; toolkit/host defaults keep their language.
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitTheme, KitThemes, KitToggleGroup } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitToggleGroup — exemple";
    preferred-width: 420px;
    preferred-height: 180px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Groupe de boutons bascule"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitToggleGroup { theme: root.theme; rows: [{ token: 11, label: "Courriel", selected: true, disabled: false }, { token: 23, label: "Notification push", selected: false, disabled: false }, { token: 38, label: "SMS", selected: false, disabled: true }]; generation: 1; active-token: 11; toggled(token, generation) => { root.status = "Identifiant du choix " + token; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Télécharger cet exemple

API publique

Hérite de Rectangle.

Propriétés

Nom	Type	Sens
`required`	`bool`	`in`
`required-message`	`string`	`in`
`custom-validity`	`string`	`in-out`
`validity`	`KitValidityState`	`out`
`will-validate`	`bool`	`out`
`validation-message`	`string`	`out`
`theme`	`KitTheme`	`in`
`control-size`	`ControlSize`	`in`
`access`	`FieldAccess`	`in`
`rows`	`[ChoiceRow]`	`in`
`generation`	`int`	`in`
`active-token`	`int`	`in`
`label`	`string`	`in`
`has-focus`	`bool`	`out`

Types et variantes

Type	Déclaration
`struct ChoiceRow`	`token: int, label: string, disabled: bool, selected: bool`
`enum ControlSize`	`compact, medium, comfortable`
`enum FieldAccess`	`editable, read-only, disabled`
`struct KitValidityState`	`valid: bool, value-missing: bool, type-mismatch: bool, pattern-mismatch: bool, too-long: bool, too-short: bool, range-underflow: bool, range-overflow: bool, step-mismatch: bool, bad-input: bool, custom-error: bool,`
`enum NavigationStep`	`next, previous, first, last, page-next, page-previous`

Signaux

invalid()
navigate(NavigationStep)
toggled(int, int)

Fonctions

check-validity() → bool
report-validity() → bool
set-custom-validity(message: string)
reset-validation()
take-focus()
