Sélecteur segmenté pour Slint

KitSegmentedControl · Slint Kit 0.3.1

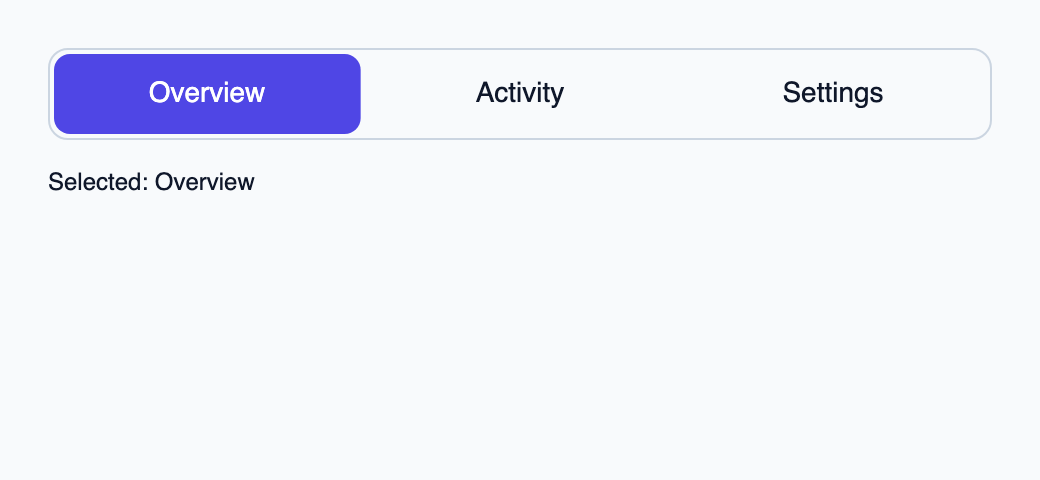

Choix exclusif compact présenté sous forme de segments.

Essayer le composant

Télécharger le projet complet, le décompresser et lancer cargo run --locked dans son dossier. Rust 1.92+ ; Slint Kit 0.3.0 depuis crates.io. Vous pouvez aussi copier les quatre fichiers ci-dessous.

Sélectionnez Activity : Rust accepte la clé et redessine l’élément sélectionné.

ui/app.slint

export { KitFormValidation, HtmlInputKind, NumberInputFormat, KitInputConstraints, KitValidationResult, KitValidityState } from "@kit/kit.slint";
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitSegmentedControl, OptionRow, SelectState, NavigationStep, CloseReason, SelectionAvailability, KitTheme, KitThemes } from "@kit/kit.slint";
export component App inherits Window {
    title: "KitSegmentedControl example";
    preferred-width: 520px;
    preferred-height: 240px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in property <[OptionRow]> rows;
    in property <SelectState> select-state;
    in property <string> selected-label: "Overview";
    in-out property <string> query;
    callback select-open();
    callback select-navigate(NavigationStep);
    callback select-activate(int, int);
    callback select-dismiss(CloseReason);
    callback select-query(string);
    callback select-typeahead(string);
    VerticalLayout {
        padding: 24px;
        spacing: 16px;
        alignment: start;
        control := KitSegmentedControl {
            theme: root.theme; label: "Destination";
            rows: [{ token: root.rows[0].token, label: root.rows[0].label, disabled: false, selected: root.select-state.selected.present && root.select-state.selected.token == root.rows[0].token }, { token: root.rows[1].token, label: root.rows[1].label, disabled: false, selected: root.select-state.selected.present && root.select-state.selected.token == root.rows[1].token }, { token: root.rows[2].token, label: root.rows[2].label, disabled: false, selected: root.select-state.selected.present && root.select-state.selected.token == root.rows[2].token }];
            generation: root.select-state.generation; active-token: root.select-state.active.token;
            navigate(step) => { root.select-navigate(step); }
            activate(token, generation) => { root.select-activate(token, generation); }
        }
        result := Text { text: "Selected: " + root.selected-label; color: root.theme.text-primary; }
    }

}

src/main.rs

// SPDX-License-Identifier: GPL-3.0-or-later
use slint::ComponentHandle;
use slint_kit::{Ownership, SelectOption, SelectionIntent};
#[derive(Clone, Copy, PartialEq, Eq, Hash)]
enum Destination { Overview, Activity, Settings }
impl Destination {
    fn label(self) -> &'static str {
        match self { Self::Overview => "Overview", Self::Activity => "Activity", Self::Settings => "Settings" }
    }
}

mod ui { slint::include_modules!(); }
fn main() -> Result<(), slint::PlatformError> {
    let app = ui::App::new()?;
    slint_kit::init_form_validation!(ui, app);
    let selection = slint_kit::bind_select!(ui, app, vec![
        SelectOption::new(Destination::Overview, "Overview"),
        SelectOption::new(Destination::Activity, "Activity"),
        SelectOption::new(Destination::Settings, "Settings"),
    ], Some(Destination::Overview), Ownership::Local);
    let weak = app.as_weak();
    selection.on_intent(move |intent| {
        if let Some(app) = weak.upgrade() {
            app.set_selected_label(match intent {
                SelectionIntent::Commit(key) => key.label(),
                SelectionIntent::Clear => "No selection",
            }.into());
        }
    });
    selection.open();
    let persistent = selection.clone();
    app.on_select_activate(move |token, generation| {
        persistent.activate(token, generation);
        persistent.open();
    });
    app.run()
}

Cargo.toml et build.rs

Cargo.toml

[package]
name = "slint-kit-segmented-control-example"
version = "0.1.0"
edition = "2024"
rust-version = "1.92"
license = "GPL-3.0-or-later"
publish = false

[dependencies]
slint-kit = "=0.3.0"
slint = { version = "=1.18.1", default-features = false, features = ["std", "compat-1-18", "backend-winit", "renderer-skia", "accessibility"] }

[build-dependencies]
slint-kit-build = "=0.3.0"

[workspace]

build.rs

fn main() { slint_kit_build::compile("ui/app.slint").expect("compile component example"); }

Fichiers : Cargo.toml · build.rs · ui/app.slint · src/main.rs

Fournissez les ChoiceRow, generation et active-token du contrôleur. Relayez navigate et activate et choisissez ChoiceFlow.left-to-right ou .right-to-left pour la navigation.

Les segments sélectionnés utilisent l’intention principale et exposent un rôle radio. Le focus commun et la sélection contrôlée restent distincts ; les libellés peuvent revenir à la ligne. Avec SelectBinding, rouvrez le contrôle persistant après un choix validé.

Voir le code source ↗

Choisir entre une option intégrée et une composition personnalisée

Options partagées

label — propriété intégrée ; exemple de composition personnalisé

Composition visuelle

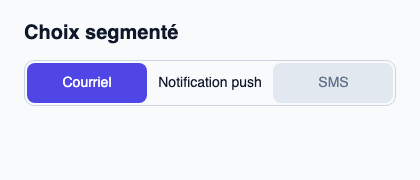

Le fichier ci-dessous produit la capture. Pour les composants pilotés par un contrôleur, il montre l’état affiché sans fournir le branchement Rust. Créer un projet.

Afficher le fichier de la capture

// Public label overrides localize this fixture; toolkit/host defaults keep their language.
// SPDX-License-Identifier: GPL-3.0-or-later
import { KitSegmentedControl, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitSegmentedControl — exemple";
    preferred-width: 420px;
    preferred-height: 180px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Choix segmenté"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitSegmentedControl { theme: root.theme; rows: [{ token: 11, label: "Courriel", selected: true, disabled: false }, { token: 23, label: "Notification push", selected: false, disabled: false }, { token: 38, label: "SMS", selected: false, disabled: true }]; generation: 1; active-token: 11; activate(token, generation) => { root.status = "Identifiant du choix " + token; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Télécharger cet exemple

API publique

Hérite de Rectangle.

Propriétés

Nom	Type	Sens
`required`	`bool`	`in`
`required-message`	`string`	`in`
`custom-validity`	`string`	`in-out`
`validity`	`KitValidityState`	`out`
`will-validate`	`bool`	`out`
`validation-message`	`string`	`out`
`theme`	`KitTheme`	`in`
`control-size`	`ControlSize`	`in`
`access`	`FieldAccess`	`in`
`rows`	`[ChoiceRow]`	`in`
`generation`	`int`	`in`
`active-token`	`int`	`in`
`flow`	`ChoiceFlow`	`in`
`label`	`string`	`in`
`has-focus`	`bool`	`out`

Types et variantes

Type	Déclaration
`enum ChoiceFlow`	`left-to-right, right-to-left`
`struct ChoiceRow`	`token: int, label: string, disabled: bool, selected: bool`
`enum ControlSize`	`compact, medium, comfortable`
`enum FieldAccess`	`editable, read-only, disabled`
`struct KitValidityState`	`valid: bool, value-missing: bool, type-mismatch: bool, pattern-mismatch: bool, too-long: bool, too-short: bool, range-underflow: bool, range-overflow: bool, step-mismatch: bool, bad-input: bool, custom-error: bool,`
`enum NavigationStep`	`next, previous, first, last, page-next, page-previous`

Signaux

invalid()
navigate(NavigationStep)
activate(int, int)

Fonctions

check-validity() → bool
report-validity() → bool
set-custom-validity(message: string)
reset-validation()
take-focus()
